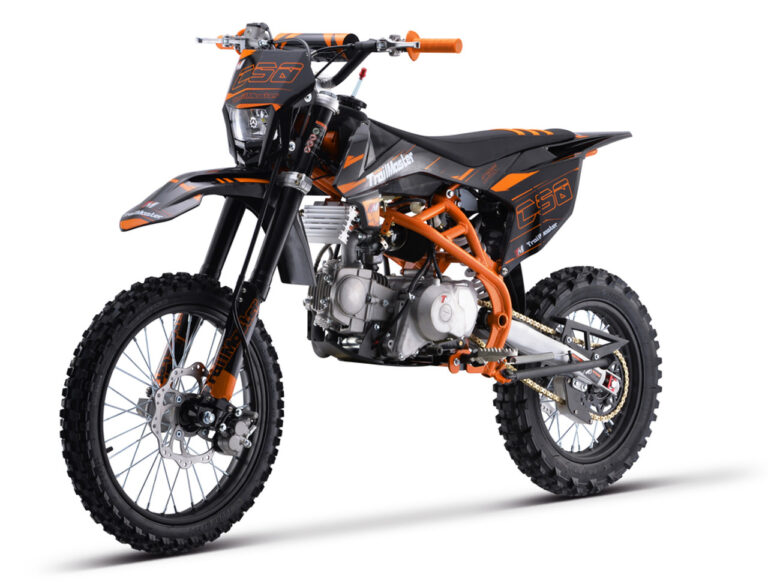

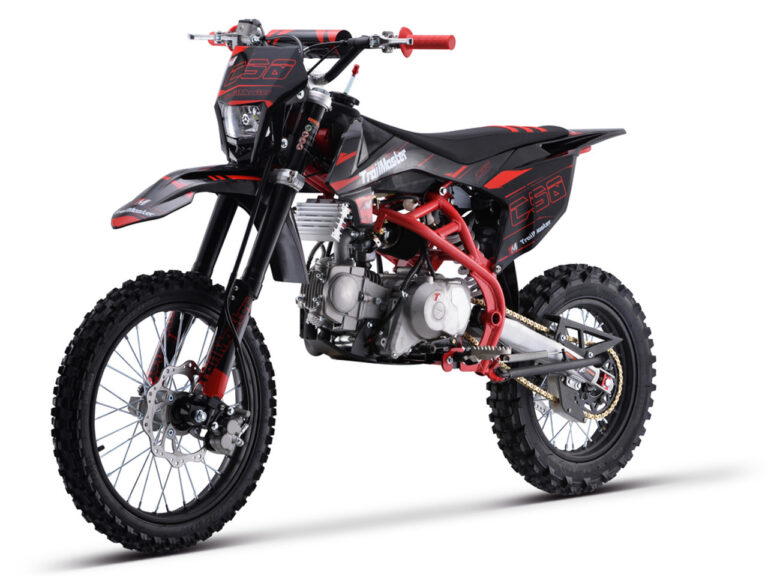

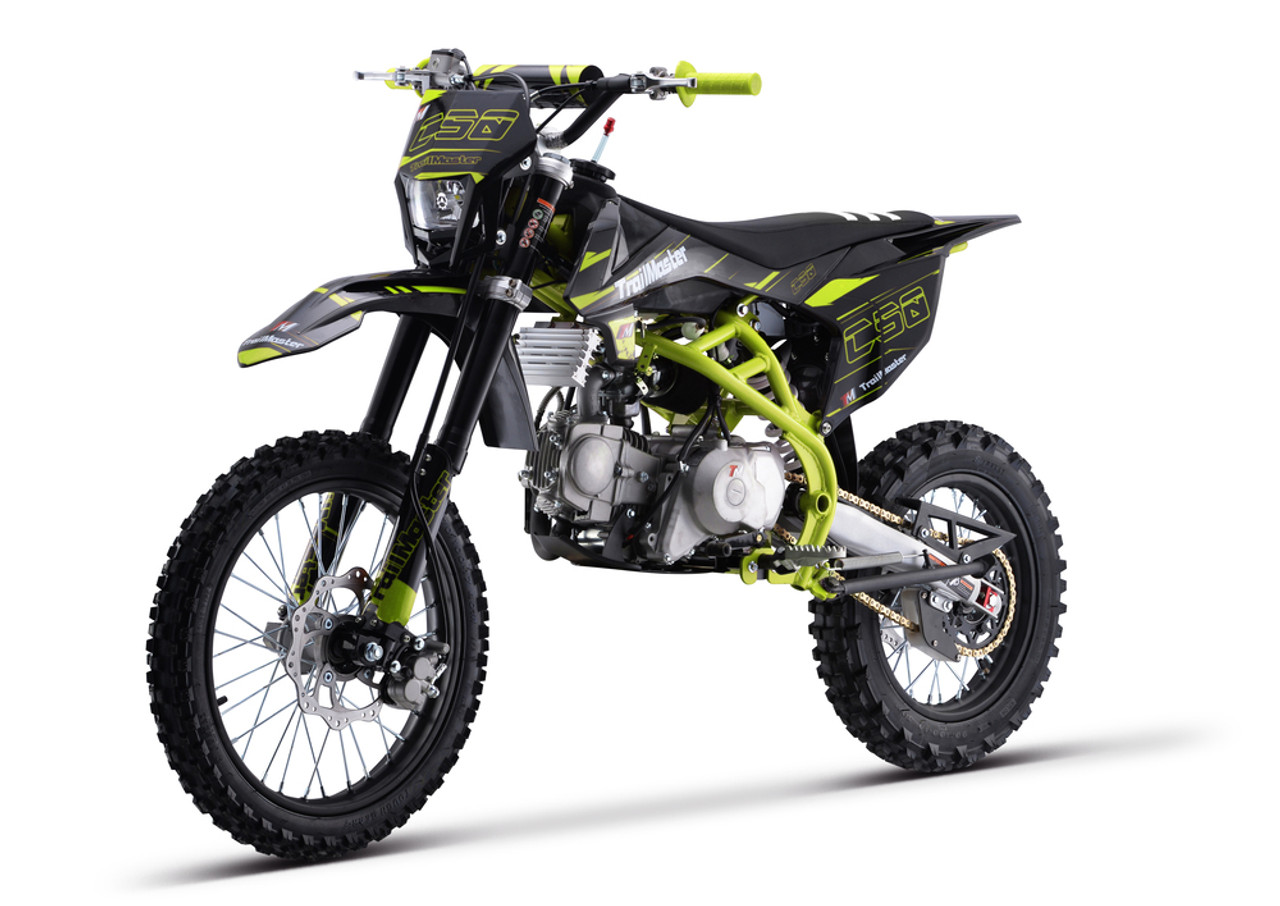

Trailmaster TM C50 150cc Off-Road Dirt Bike, 33.5-Inch Seat Height, 4-Gear Manual Clutch, LED Headlight
TM-C50-DIRT-BIKE
Original price was: $1,599.00.$1,399.00Current price is: $1,399.00.
Trailmaster TM C50 150cc Off-Road Dirt Bike, 33.5-Inch Seat Height, 4-Gear Manual Clutch, LED Headlight
Gear up for adventure with the Trailmaster TM C50, a robust 150cc off-road dirt bike engineered for performance and durability. With a 33.5-inch seat height, it offers a comfortable and commanding riding position for riders of all sizes.
Powerful Performance
The TM C50 is powered by a ZM single-cylinder, 4-stroke engine with oil cooling, delivering reliable performance and efficiency. Its 4-gear manual clutch allows for precise control and smooth shifting, making it perfect for navigating diverse terrains. Enjoy the convenience of both electric and kick start options, ensuring dependable ignition in any situation.
Durable Design
Crafted with a rugged twin girders steel tube frame, the TM C50 provides exceptional stability and durability, even on the roughest trails. The bike is equipped with 735mm inverted hydraulic forks and a 310mm spring pre-load non-adjustable shock for a smooth and controlled ride.
Enhanced Visibility and Safety
The integrated LED headlight offers bright, efficient lighting for enhanced visibility and safety during early morning or late evening rides, ensuring you can enjoy your adventures any time of day.
Key Features:
- Engine: Powerful 4-stroke, oil-cooled 145ml engine with 9.5 HP
- Starting System: Electric and kick start options for reliability
- Transmission: 4-gear manual clutch for smooth shifting
- Dimensions: 49.8” wheelbase and 33.5” seat height for a comfortable ride
- Suspension: 735mm inverted hydraulic forks for enhanced control
- Rear Shock: 310mm spring pre-load non-adjustable shock
- Tires: Front tire: 17” / Rear tire: 14” for optimal traction
- Safety Features: LED headlight for improved visibility
- Convenience: Foldable clutch and brake lever for easy storage
- Comfort: Trailmaster ribbed seat for added comfort during long rides
Vehicle Specifications
Engine System
| Parameter | Details |
|---|---|
| Engine Type | ZM-Single Cylinder, 4-Stroke, Oil Cooling |
| Displacement | 145 ml |
| Max Power | 6.8 /8500 (1±5%) kw/r/min |
| Max Torque | 11 /5500 (1±5%) N.m/r/min |
| Compression Ratio | 9.0:1 |
| Bore and Stroke | 56.5 x 57.8 (mm×mm) |
| Shift Type | N-1-2-3-4, Four-Gear Manual Shift |
| Start Type | Electric & Kick start |
| Ignition | CDI |
| Min. Fuel Consumption | ≤367g/kw.h |
| Engine Oil | SJ-5W/40 |
| Transmission | Chain Drive; #428 & 110L Chain, 14/41T |
Size Data
| Parameter | Details |
|---|---|
| Overall Size | (Inches) 71.3*28.9*43.3 / (mm) 1810*735*1100 |
| Wheel Base | 49.8" (1265MM) |
| Seat Height | 33.5" (850MM) |
| Ground Clearance | 13" (330MM) |
| Fuel Capacity | 4.5 L / 1.2 Gal. |
| Tires | FT: 70/100-17 - RR: 90/100-14 Knobby tires |
| Wheels | Steel 1.6 x 17" / 1.85 x 14" Rims, DCA Hubs |
Frame/Suspension/Brake System/More Features
| Parameter | Details |
|---|---|
| Frame | Twin Girders Steel Tube Frame |
| Front Fork | Inverted 45*48-735mm Forks, Non-Adjustable |
| Rear Shock | ￠10*￠11*310mm, Spring Pre-load |
| Swing-Arm | Steel Tube 14inch |
| Handle Bar | Steel Crossbar, L=720mm; Dia=22mm |
| Front Brake | Hydraulic Twin Piston Caliper, 220mm Disc |
| Rear Brake | Hydraulic Single Piston Caliper, 190mm Disc |
| Exhaust | Steel Pipe with Catalyst Converter (EPA Standard) |
| Brake & Clutch Lever | Foldable |
| Seat | Ribbed TrailMaster Seat |
| HeadLight | LED |
Packing and Loading
| Parameter | Details |
|---|---|
| Packing Size | 62.6 x 14.8 x 29.9 inch |
| N.W | 172 LBS / 78 KG |
| G.W | 203 LBS / 92 KG |
